EP-DH8100

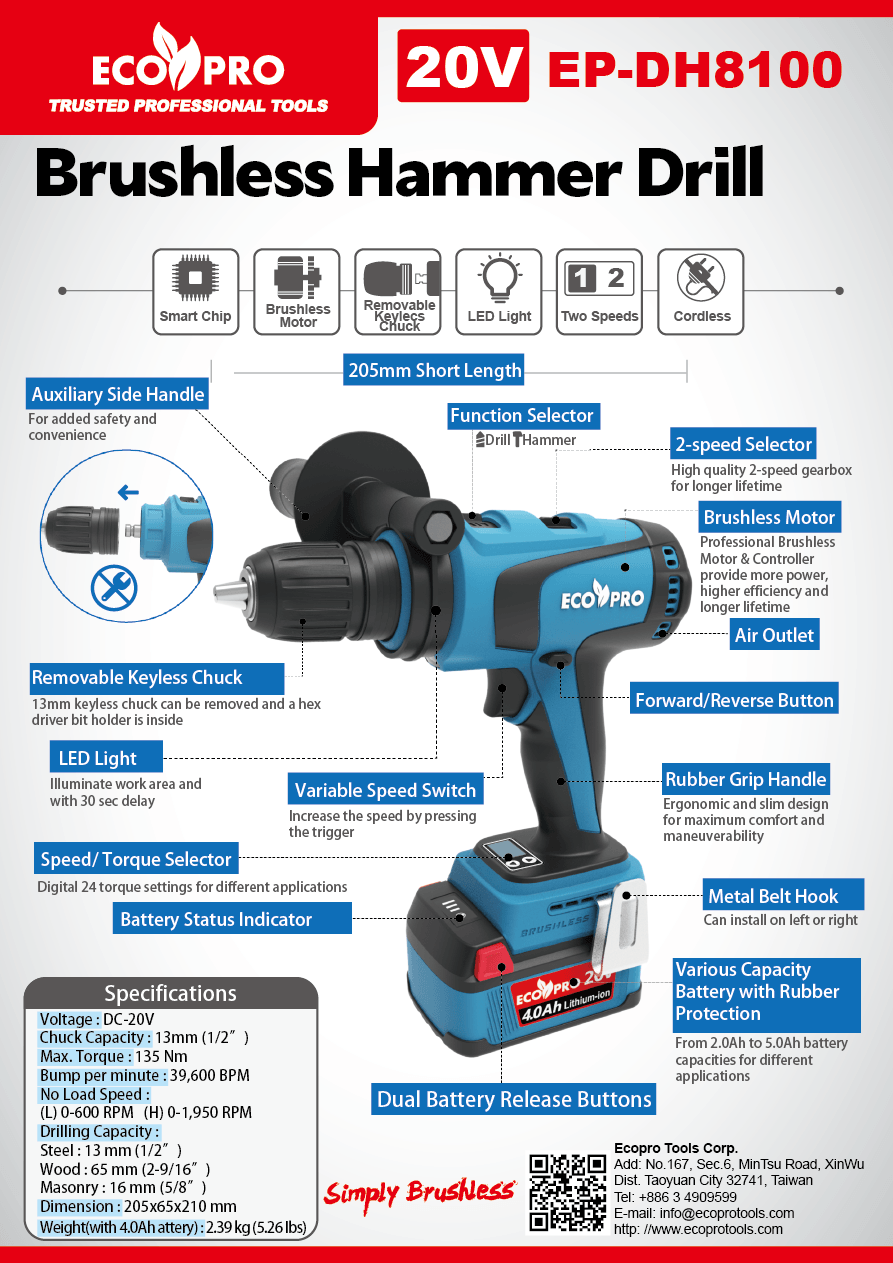

Product name : 20V Brushless Hammer Drill
Product No： EP-DH8100
Specification

  • Voltage : DC-20V
  • Chuck Capacity : 13mm (1/2”)
  • No Load Speed :
      (L) 0-600 RPM
      (H) 0-1,950 RPM
  • Max. Torque : 135 Nm
  • Bump per minute : 39,600 BPM
  • Drilling Capacity :
     Steel : 13 mm (1/2”)
     Wood : 65 mm (2-9/16”)
     Masonry : 16 mm (5/8”)

Features
  • Brushless EC motor, max. power, best performance & longer life time
  • Convenient to use without power cable
  • 135Nm high torque & 2 speed design
  • 13mm (1/2”) detachable keyless chuck
  • A built in magnetic hex bit holder is available when removing the keyless chuck
  • Electronic 24 torque settings with digital display
  • Ergonomic handle design with soft grip for comfortable use
  • Auxiliary side handle increases ease of use and safety
  • LED illuminates work area with 30 second delay after stopping the tool
