EP-DS890P

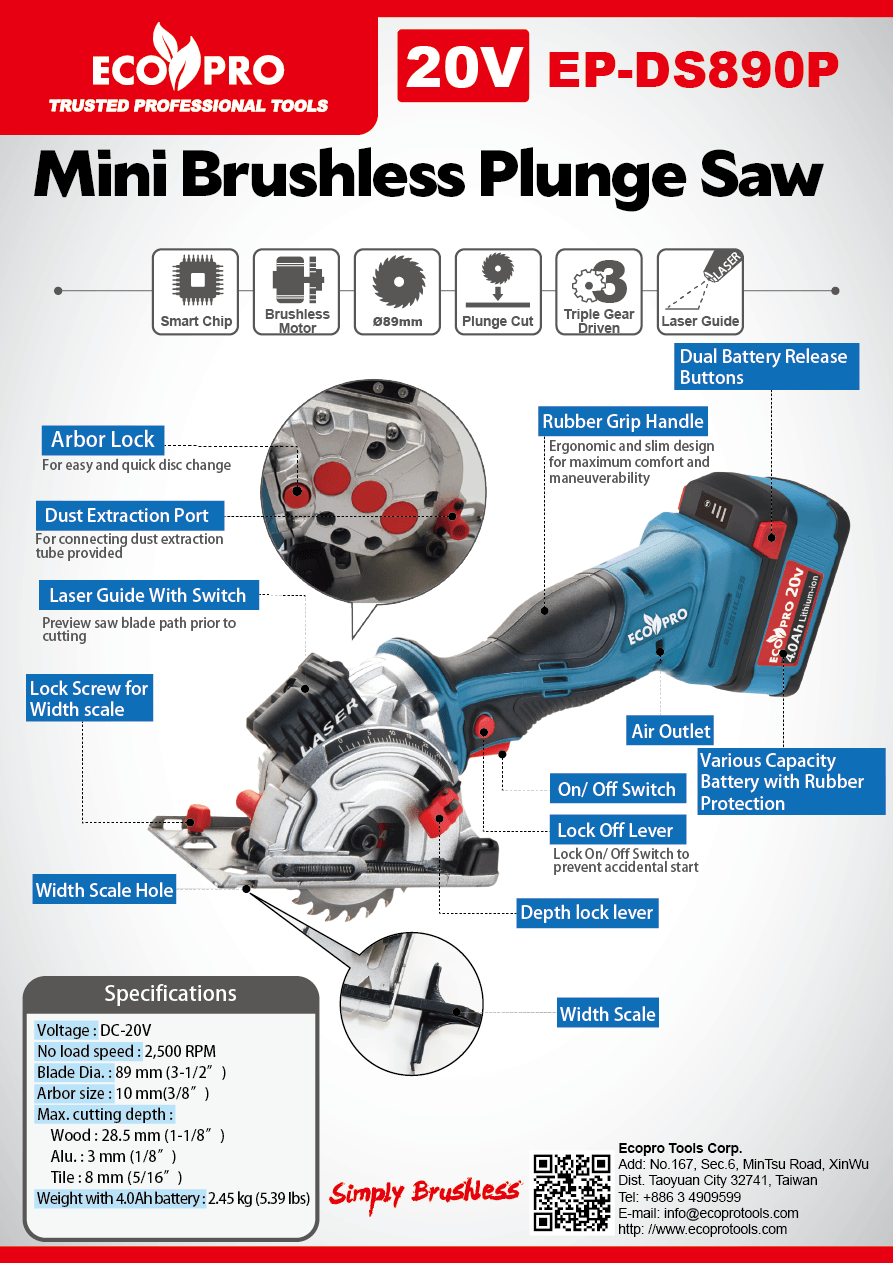

Product name : 20V Mini Brushless Plunge Saw
Product No： EP-DS890P
Specification

  • Voltage DC-20V
  • Blade dia. 89mm (3-1/2")
  • Arbor size 10mm (3/8")
  • No load speed 2,500 RPM
  • Max. cutting depth
    • Wood : 28.5mm (1-1/8”)
    • Alum. : 3mm (1/8”)
    • Tile : 8mm (5/16”)
  • Dimension 308x104x90 mm
  • Weight 2.45 kg ( with 4.0Ah battery )

Features
  • Brushless EC motor, compact, more functions, longer run time, service free
  • One hand operation for perfect handling in plunge cutting wood, metal and tile
  • Lock off switch prevents accidental startup
  • Triple geared driving system achieves maximum torque and cutting efficiency
  • Laser guide for previewing saw blade path prior to cutting
  • Tool free cutting depth adjustment
  • Anti-restart design prevents accidental startup after power supply interruption
  • Dust exhaust tube for connecting dust extractor
