EP-DW8401

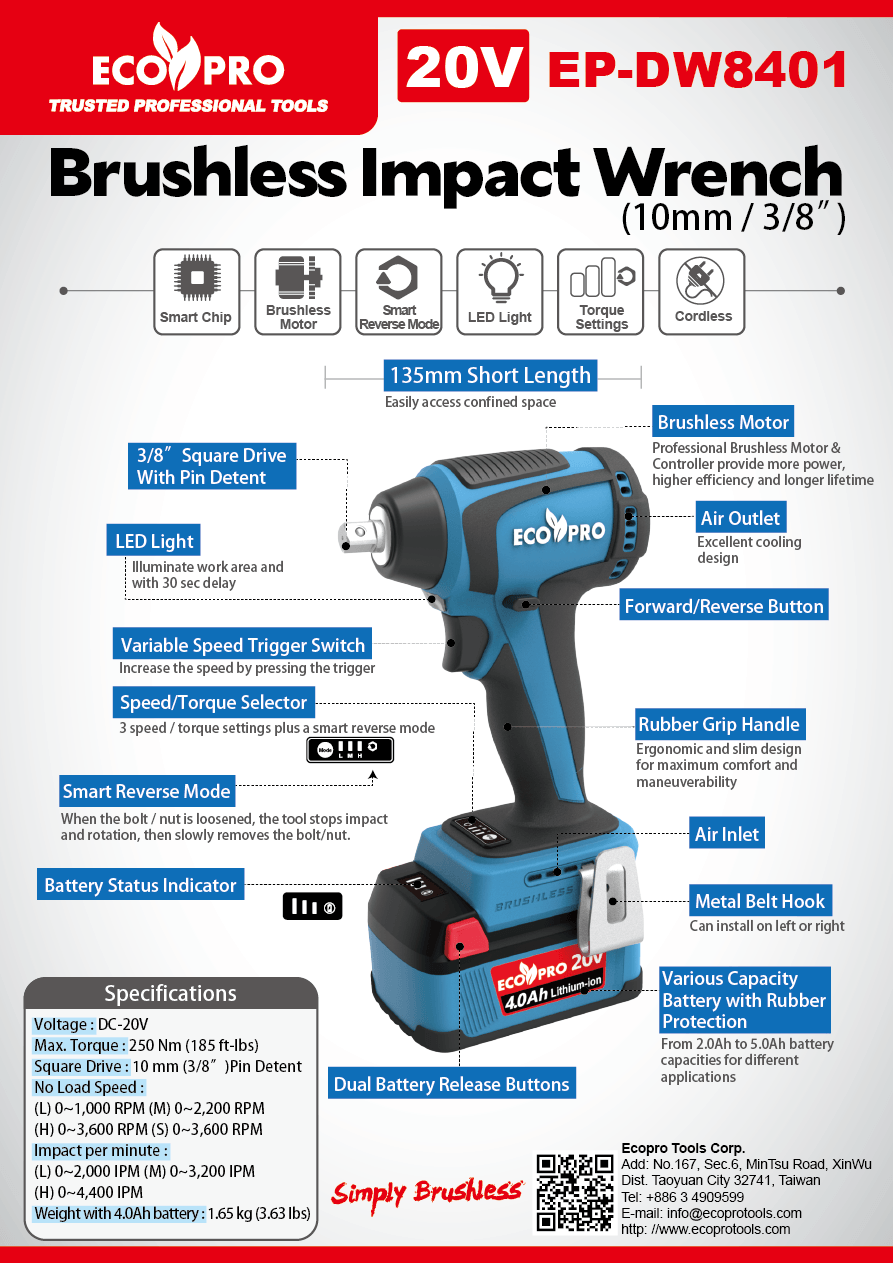

Product name : 20V Brushless Impact Wrench (10mm / 3/8”)
Product No： EP-DW8401
Specification

  • Voltage : DC-20V
  • No Load Speed :
    (L) 0~1,000 RPM (M) 0~2,200 RPM
    (H) 0~3,600 RPM (S) 0~3,600 RPM
  • Impact per minute :
    (L) 0~2,000 IPM (M) 0~3,200 IPM
    (H) 0~4,400 IPM
  • Max. Torque : 300 Nm
  • Square Drive : 10mm (3/8”)

Features
  • Brushless EC motor, max. power, best performance & longer life time
  • Convenient to use without power cable
  • 13mm (1/2”) square drive and 300 Nm max, fastening torque
  • 4 speed/ torque modes, including a special smart reversion mode which is used when the bolt/nut is loosened enough, the tool stops the impact and rotation
  • Variable speed for better control
  • LED illuminates work area with 30 second delay after stopping the tool
  • Short length for accessing confined space
