EP-DW8451

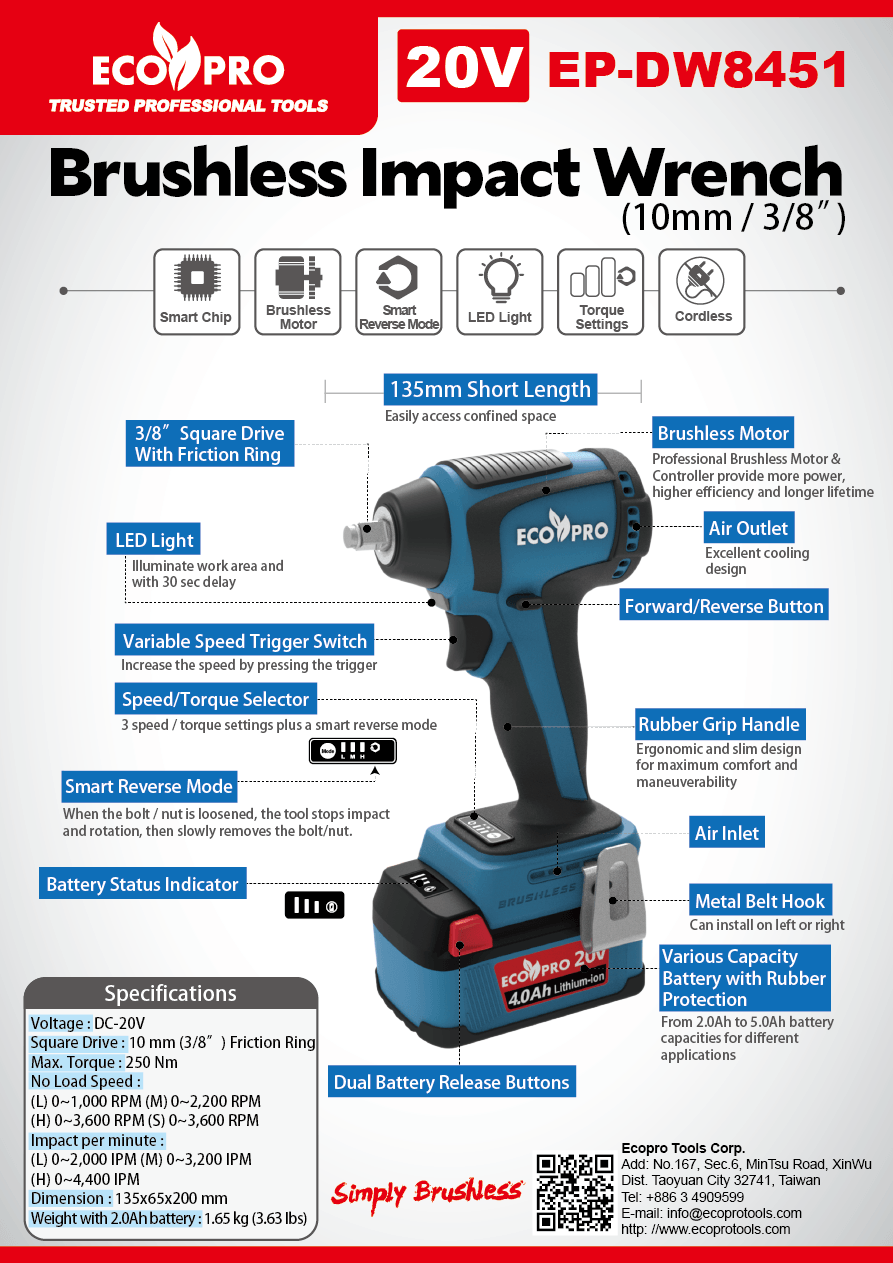

Product name : 20V Brushless Impact Wrench (10mm / 3/8”)
Product No： EP-DW8451
Specification

  • Voltage : DC-20V
  • No Load Speed :
    (L) 0~1,000 RPM (M) 0~2,200 RPM
    (H) 0~3,600 RPM (S) 0~3,600 RPM
  • Impact per minute :
    (L) 0~2,000 IPM (M) 0~3,200 IPM
    (H) 0~4,400 IPM
  • Max. Torque : 250 Nm
  • Square Drive : 10mm (3/8”) Friction Ring

Features
  • Brushless EC motor, compact, more functions, longer run time, service free
  • 3 speed / torque selections provide precise fastening control for a wide range of applications
  • Smart reverse mode is used when the bolt / nut is loosened, the tool stops impact and rotation, then slowly removes the bolt / nut
  • 135 mm short lenght and light weight
  • Variable speed switch for better control
  • LED illuminates work area with 30 second delay after stopping the tool
  • Ergonomics slim handle with soft grip for comfortable use
