EP-DI8300

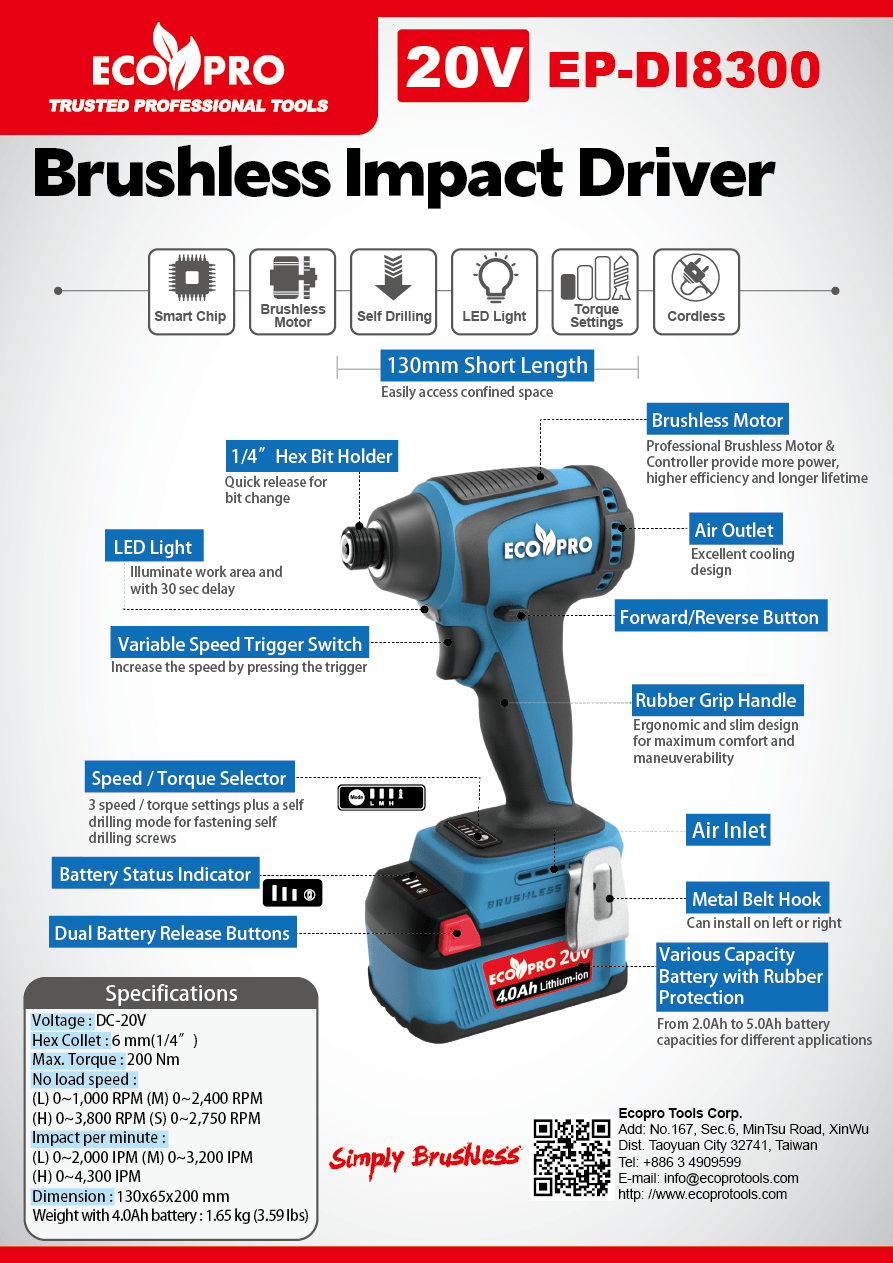

Product name : 20V Brushless Impact Driver
Product No： EP-DI8300
Specification

  • Voltage : DC-20V
  • Hex Collet : 6 mm(1/4”)
  • Max. Torque:  200 Nm
  • No load speed :
    (L) 0~1,000 RPM (M) 0~2,400 RPM
    (H) 0~3,800 RPM (S) 0~2,750 RPM
  • Impact per minute :(L) 0~2,000 IPM (M) 0~3,200 IPM
    (H) 0~4,300 IPM
  • Dimension :130x65x200 mm
  • Weight : 1.65 kg (with 4.0Ah battery)

Features
  • Brushless EC motor, compact, more functions, longer run time, service free
  • 6mm (1/4”) hex bit holder and 200 Nm max, fastening torque
  • 4 speed/ torque modes, including a self drilling mode for fastening self-drilling screws
  • Variable speed switch for better control
  • LED illuminates work area with 30 second delay after stopping the tool
  • Ergonomics slim handle with soft grip for comfortable use

20V Brushless Impact Driver
